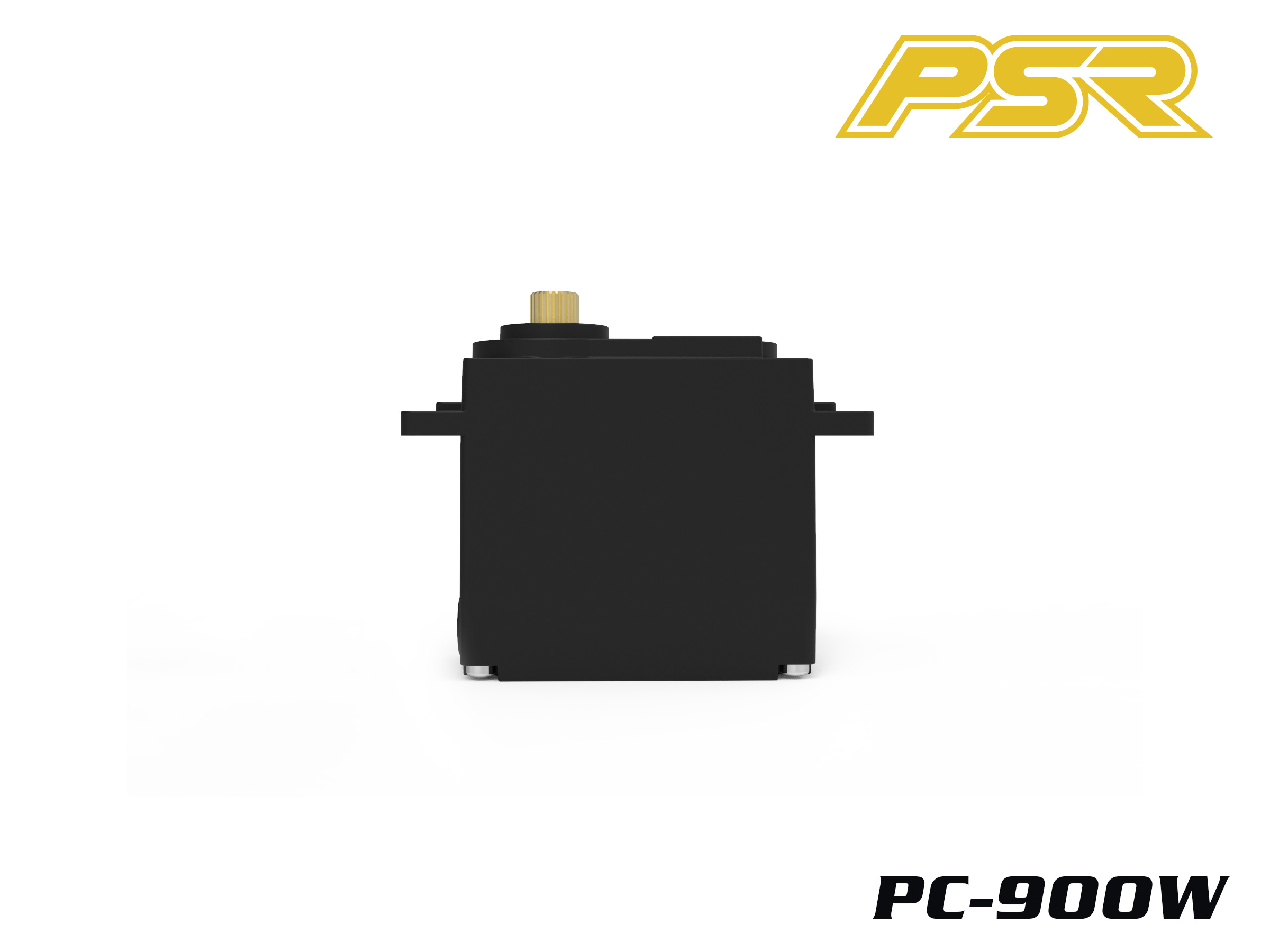

PC-900 BK

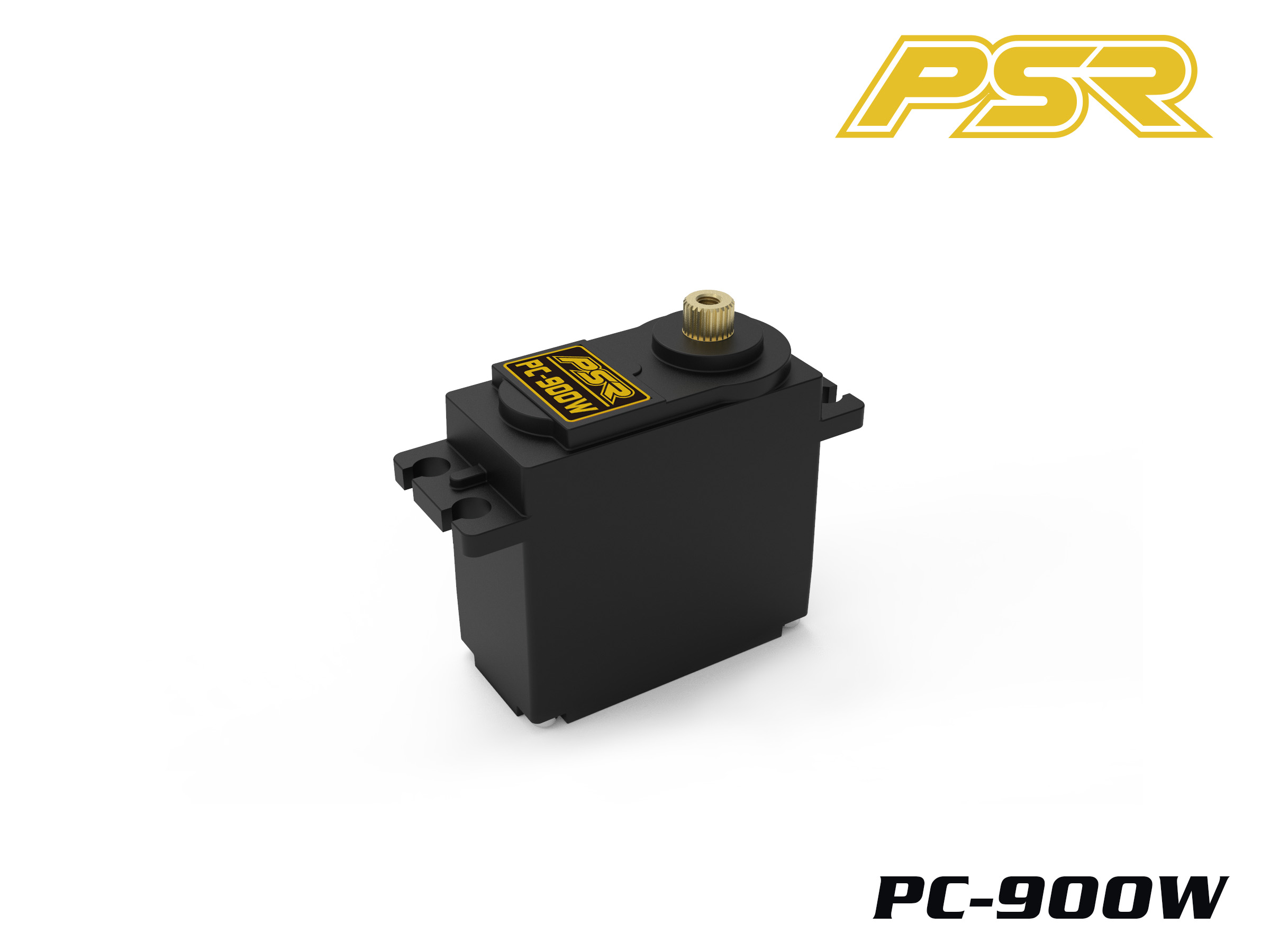

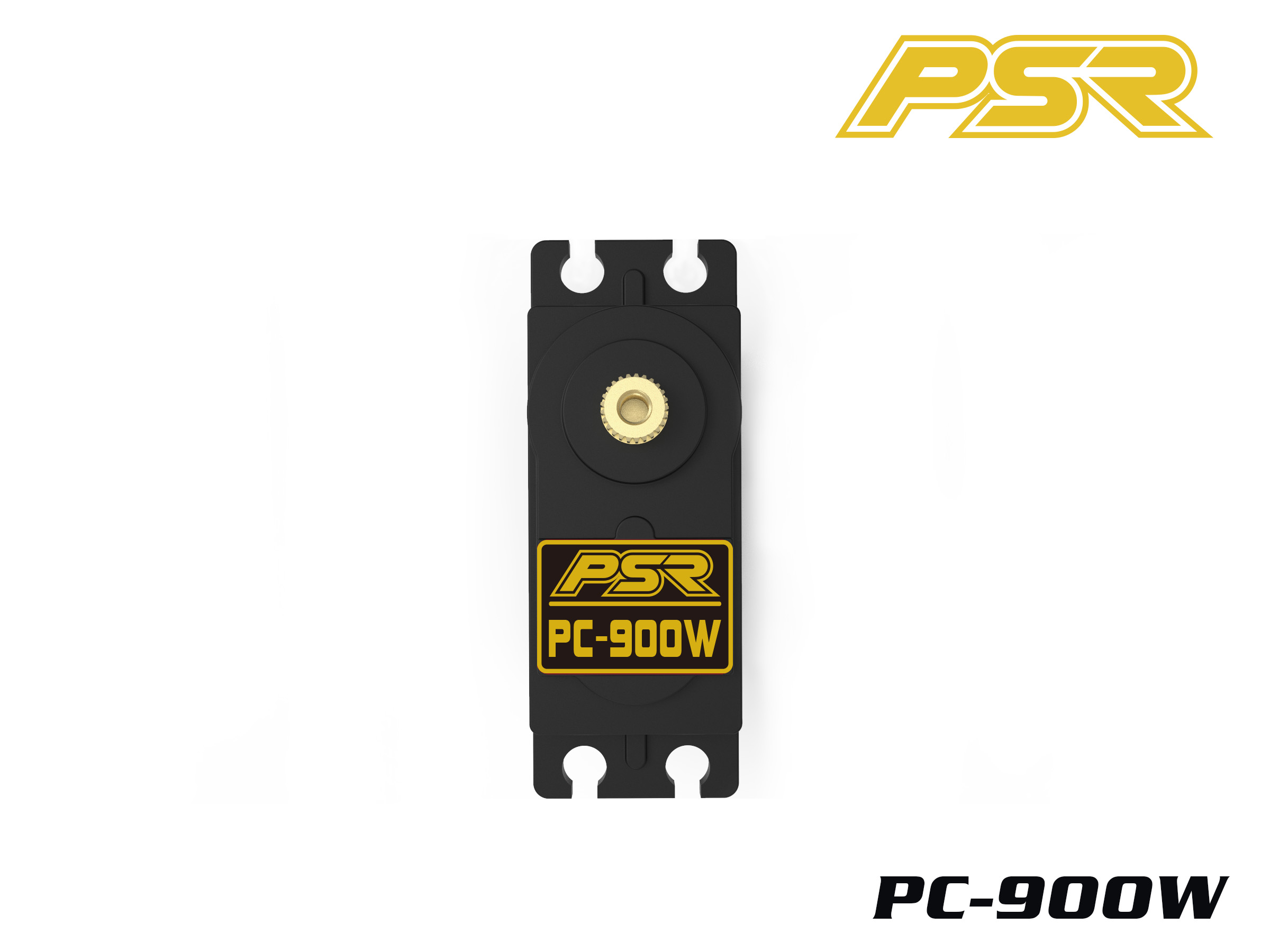

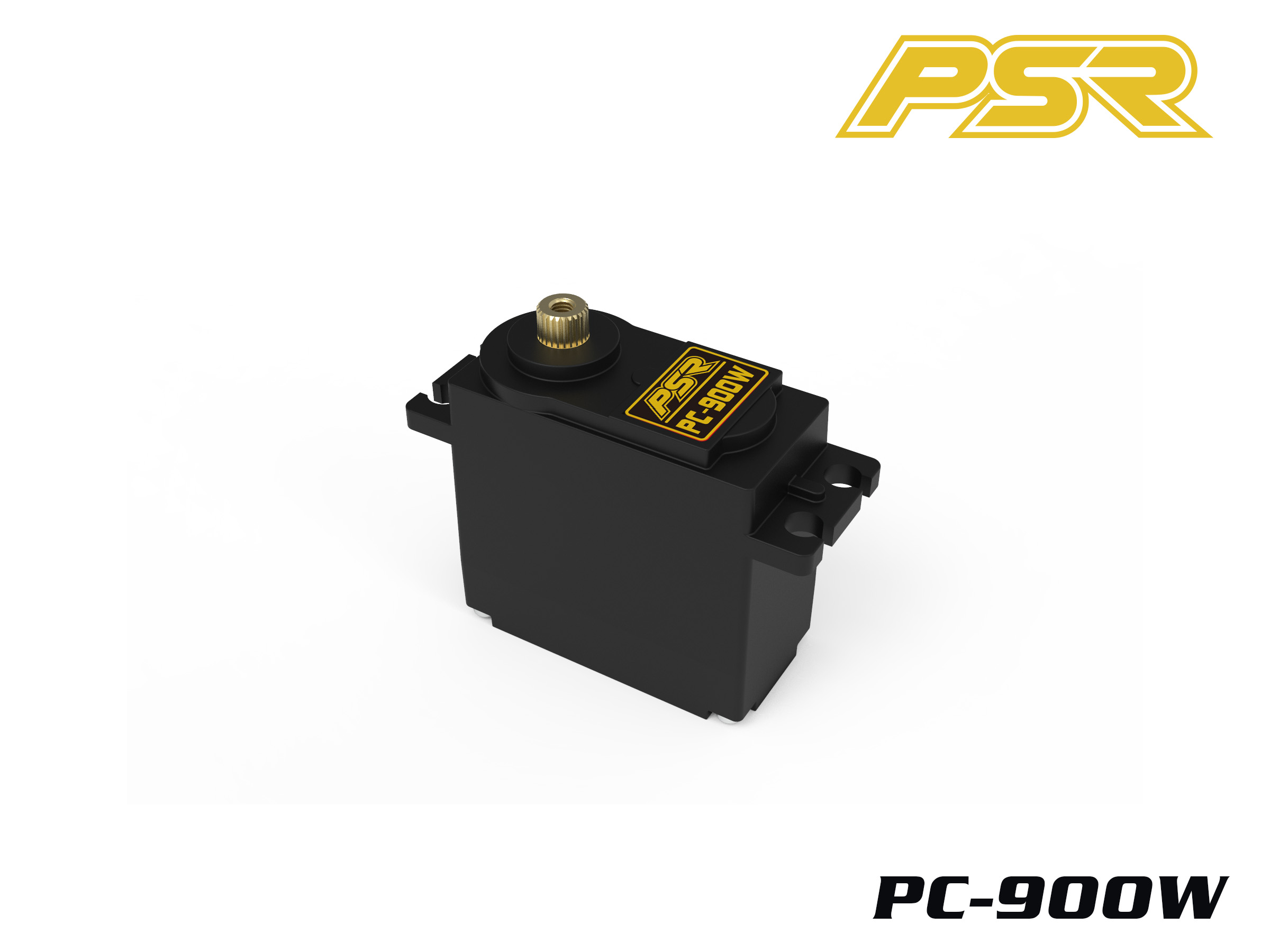

PC-900 New HV DC Motor Digital Servo with Plastic case

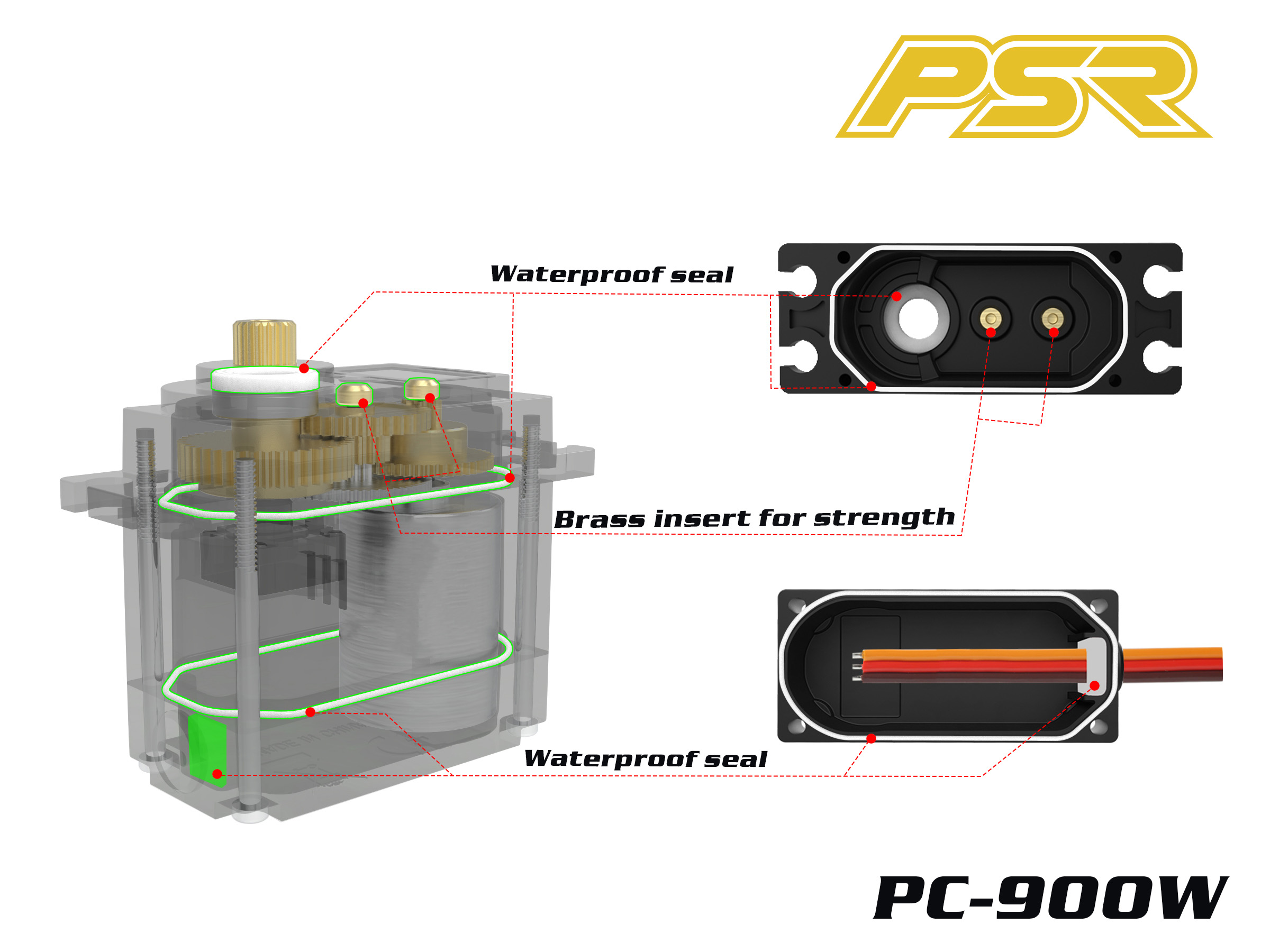

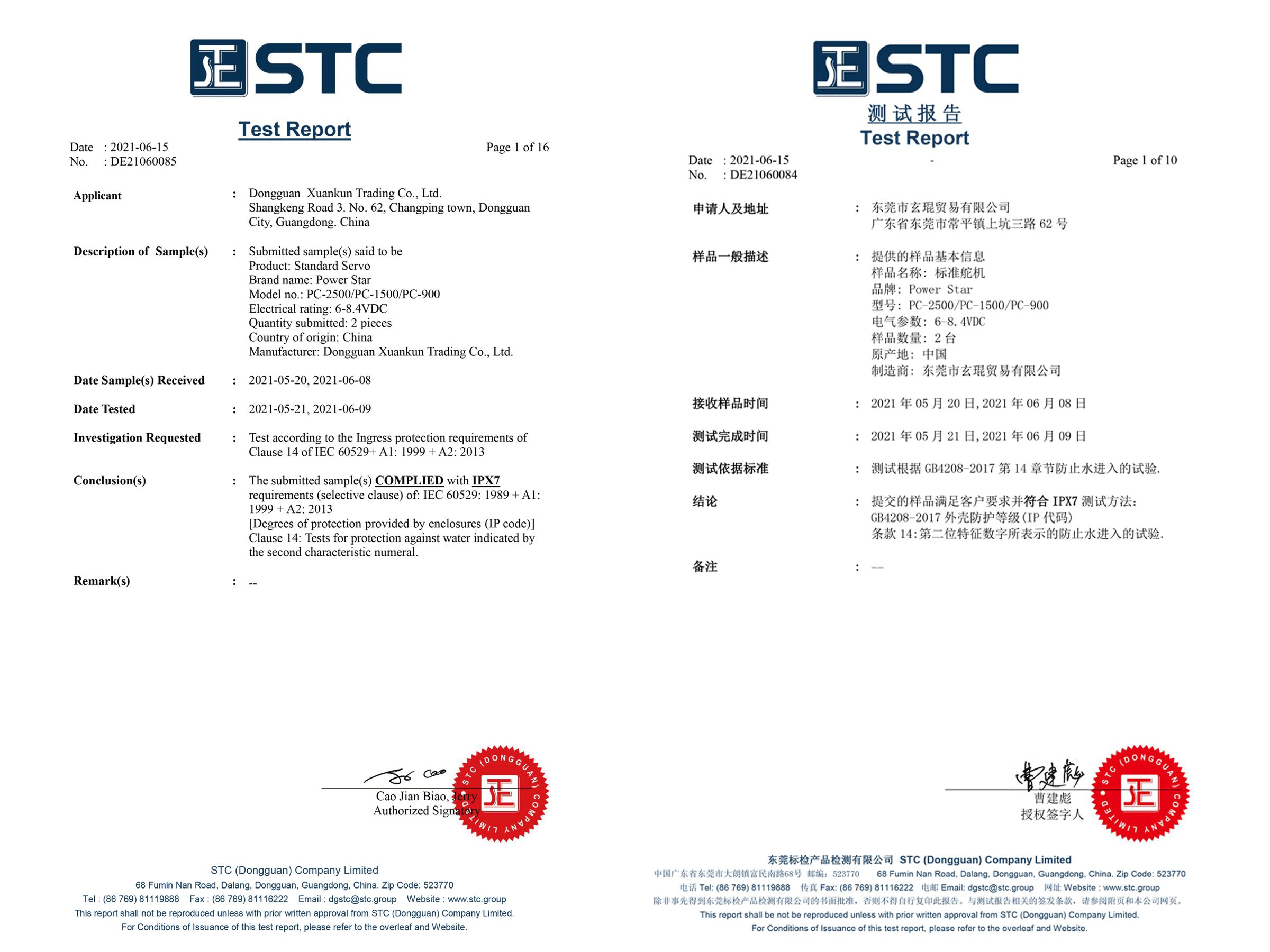

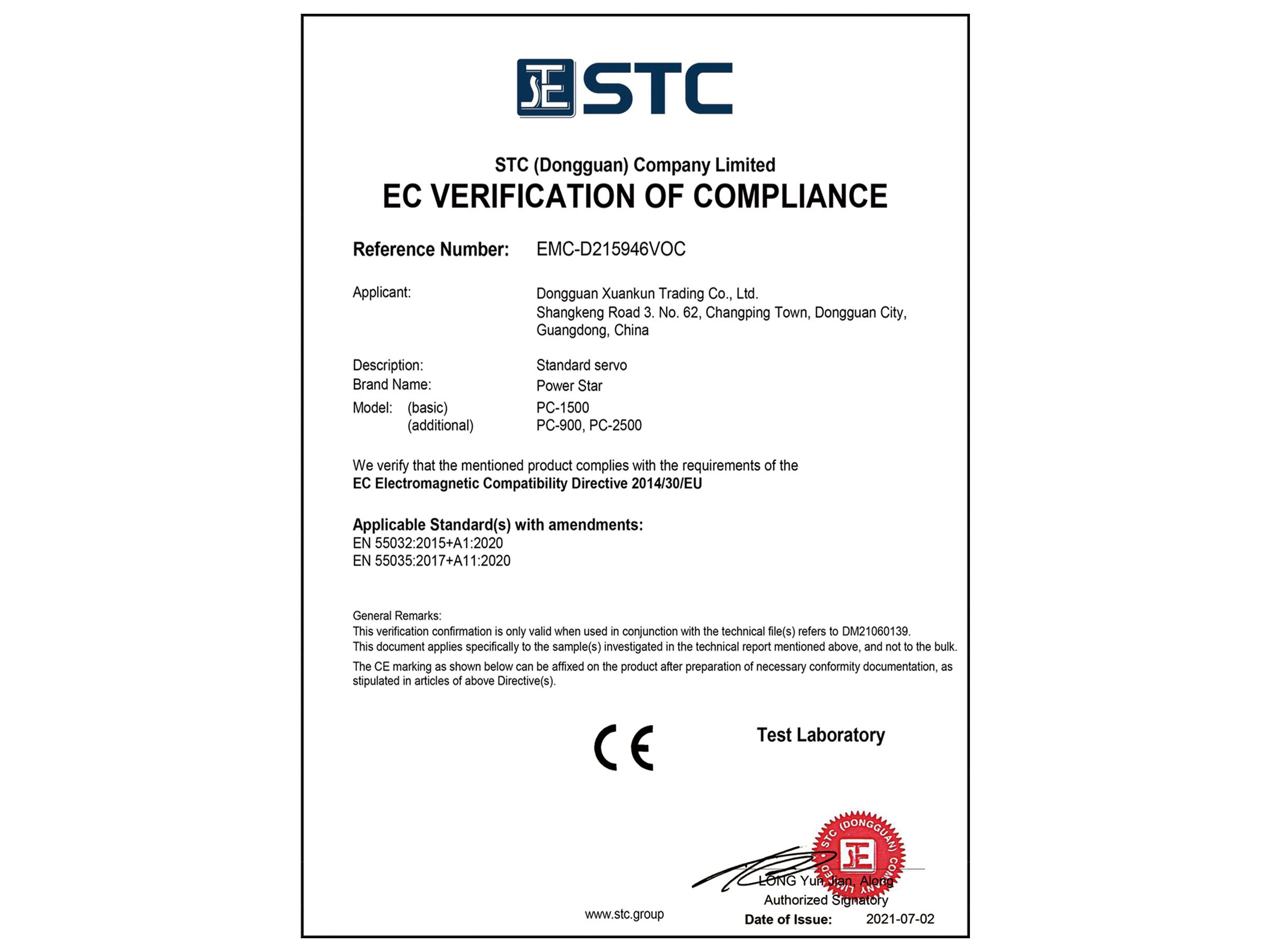

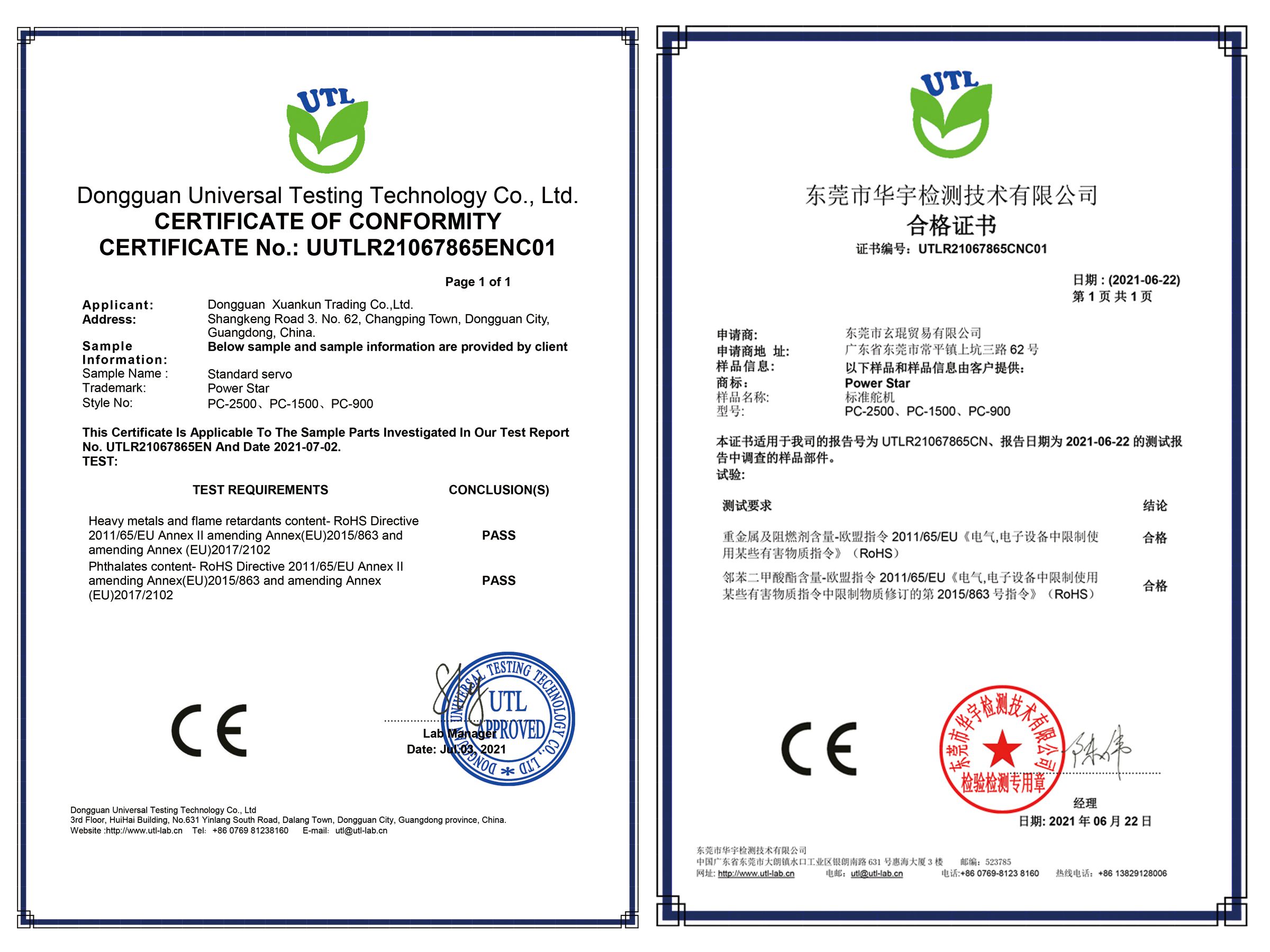

New Standard DC servo from Power Star is PC-900/PC1500/PC-2500 New High quality servo,Certified by CE & RoHS. FET motor drive,Potentiometer Angel sensor,Plastic Case, High-torque, metal-gear Standard servo with spring-style servo saver Water-resistant, enclosed receiver box High-power DC motor speed control Application for RC Car, RC boat, RC plane,Robot, Helicopter.

Brand: powerstar

Availability: 100

Torque(4.8V): 10.00 kg-cm/139 oz-in

Torque(6.0V): 12.0 kg-cm /167 oz-in

Torque(7.4V):13.0kg-cm /180 oz-in

Torque(8.4V):15.0 kg-cm /208 oz-in

Speed: 0.12 sec (4.8V) │0.11sec(6.0V)|0.1sec(7.4V)|0.09sec(8.4V)

Operating Voltage:4.8V ~ 8.4V

Weight: 62g ( no including accessory)

Bearing Type:Metal Bearing

Motor Type:DC

Gear Type:copper

Operating Temperature range:-20℃~60℃

Working frequency:1500μs / 333Hz

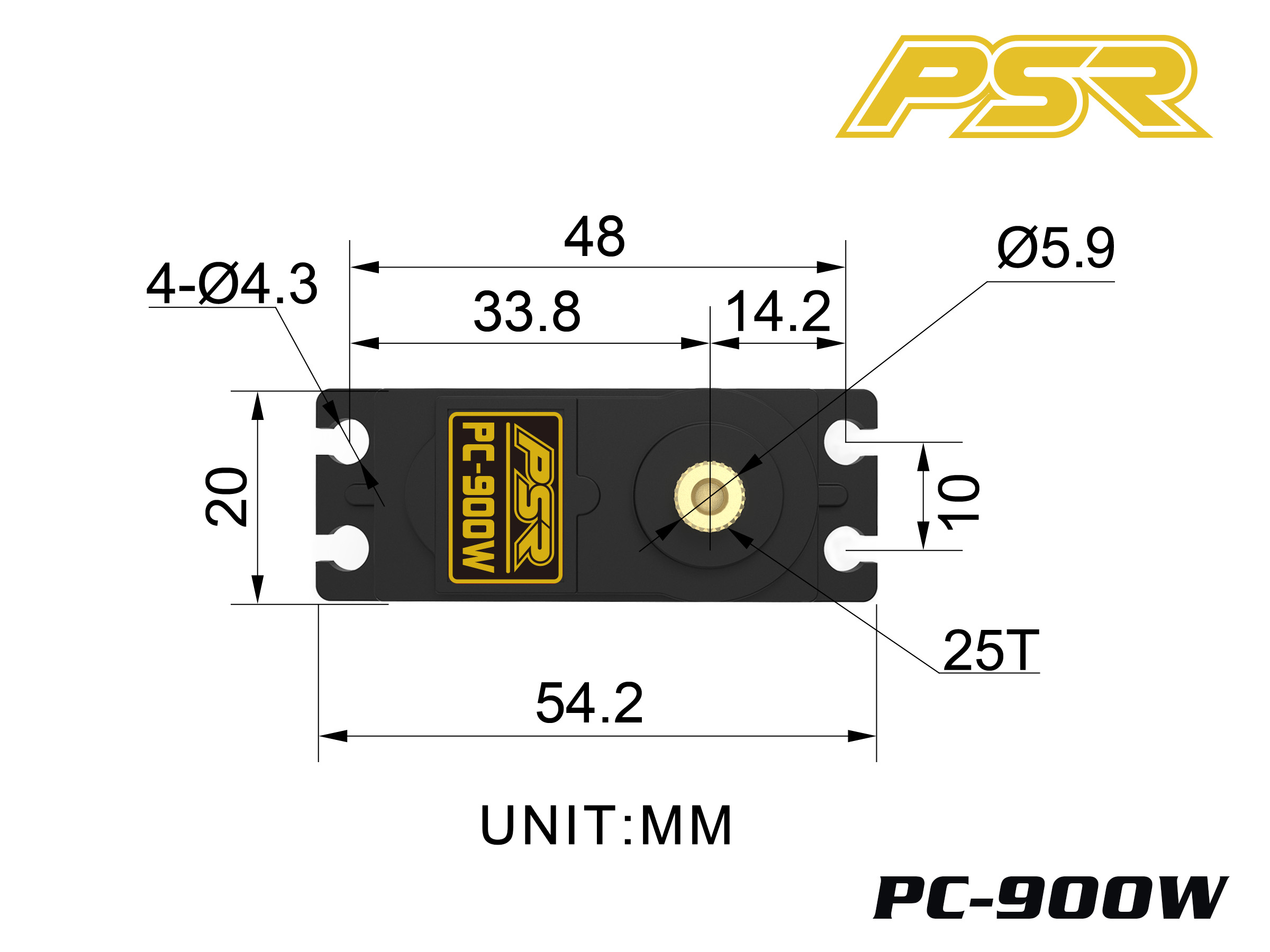

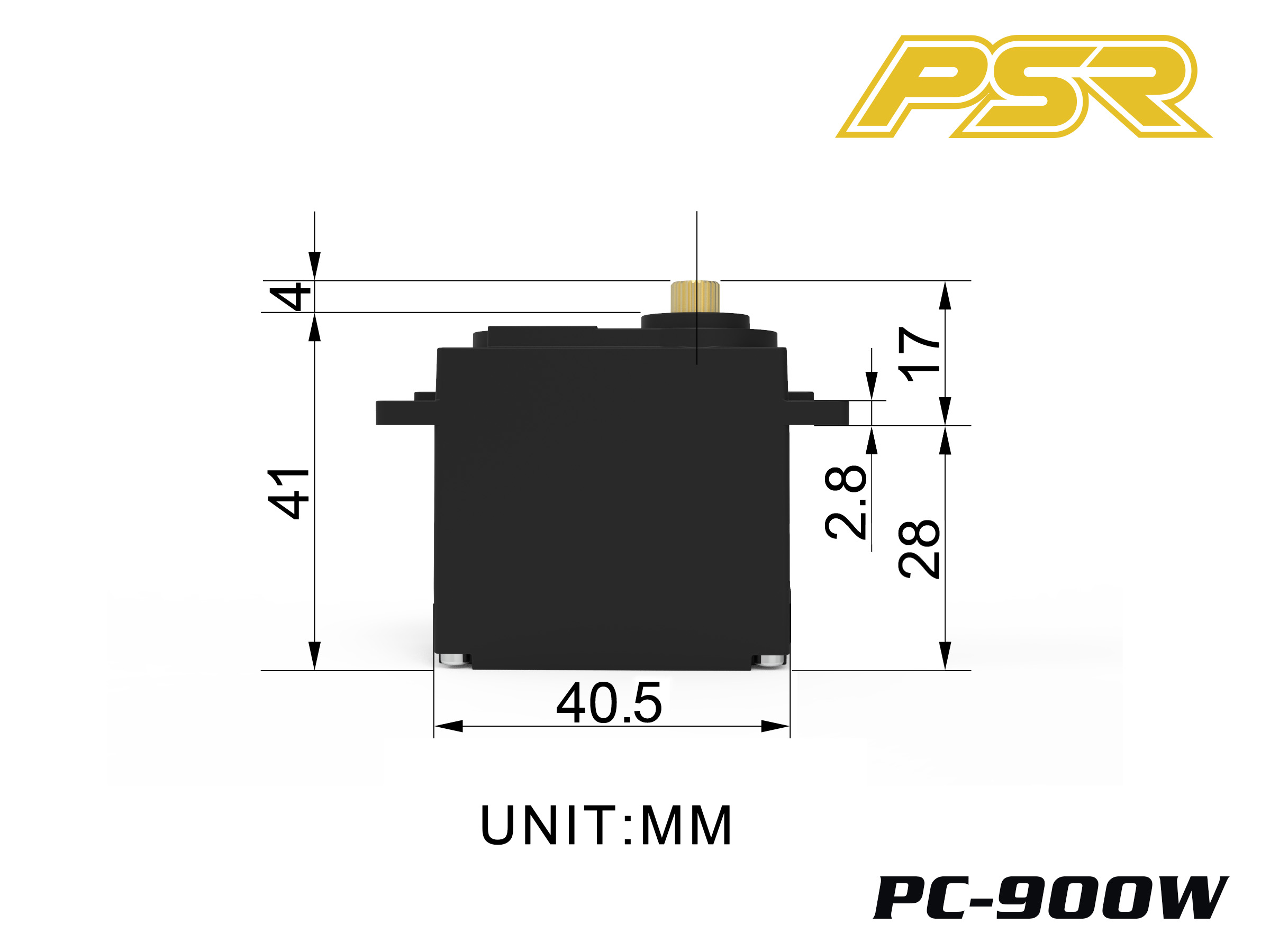

Size:40 x 20 x 40 mm
