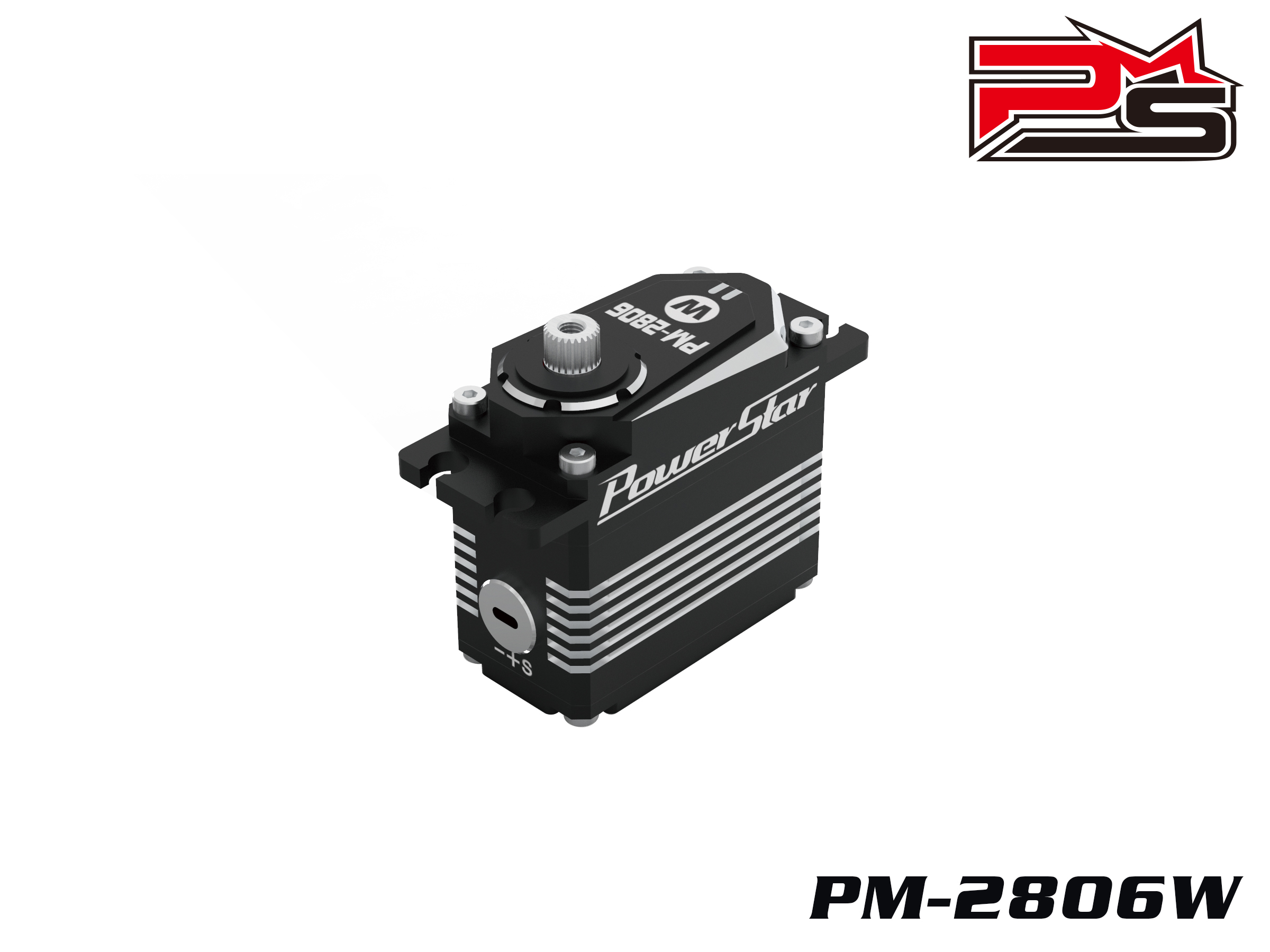

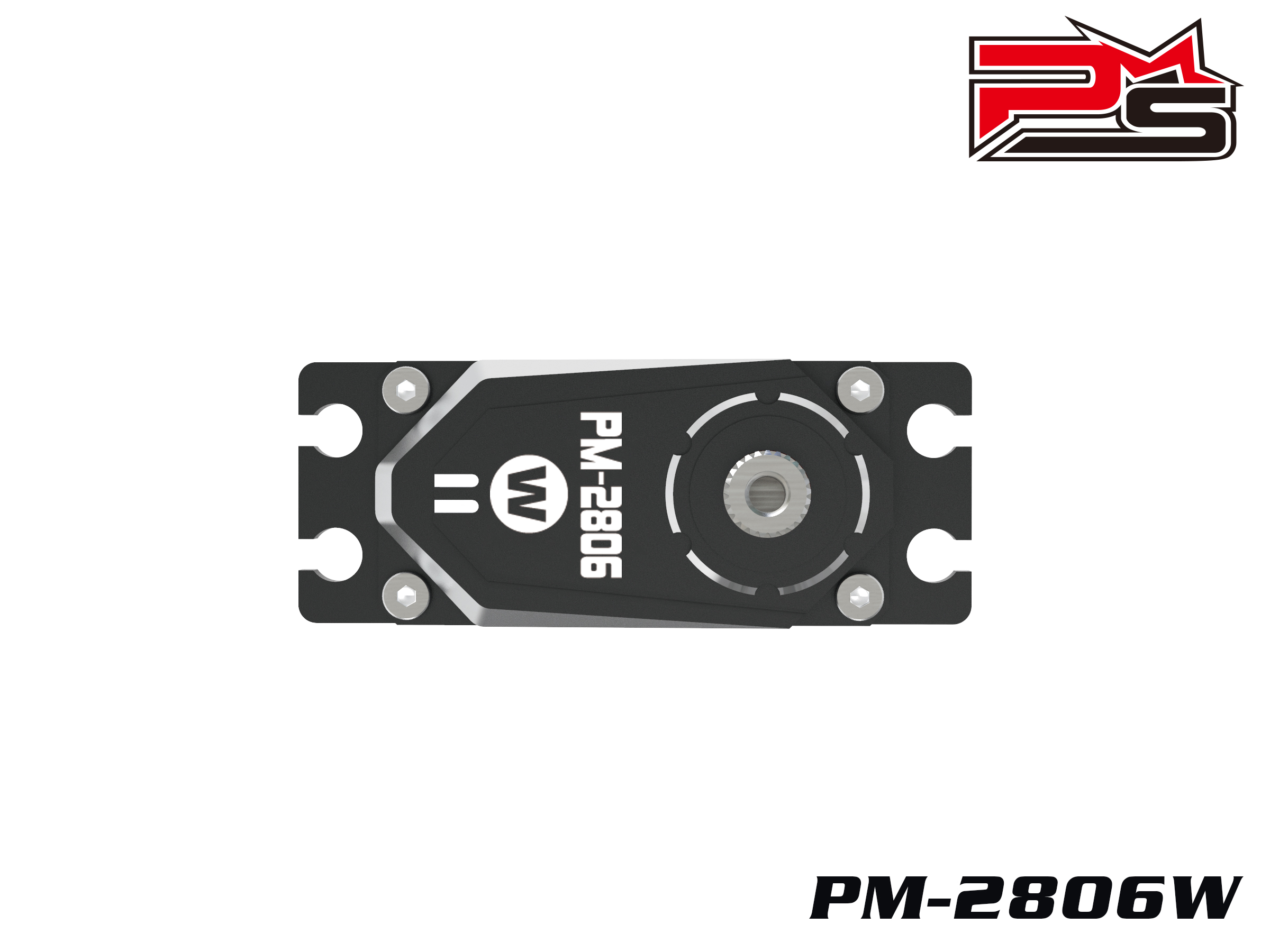

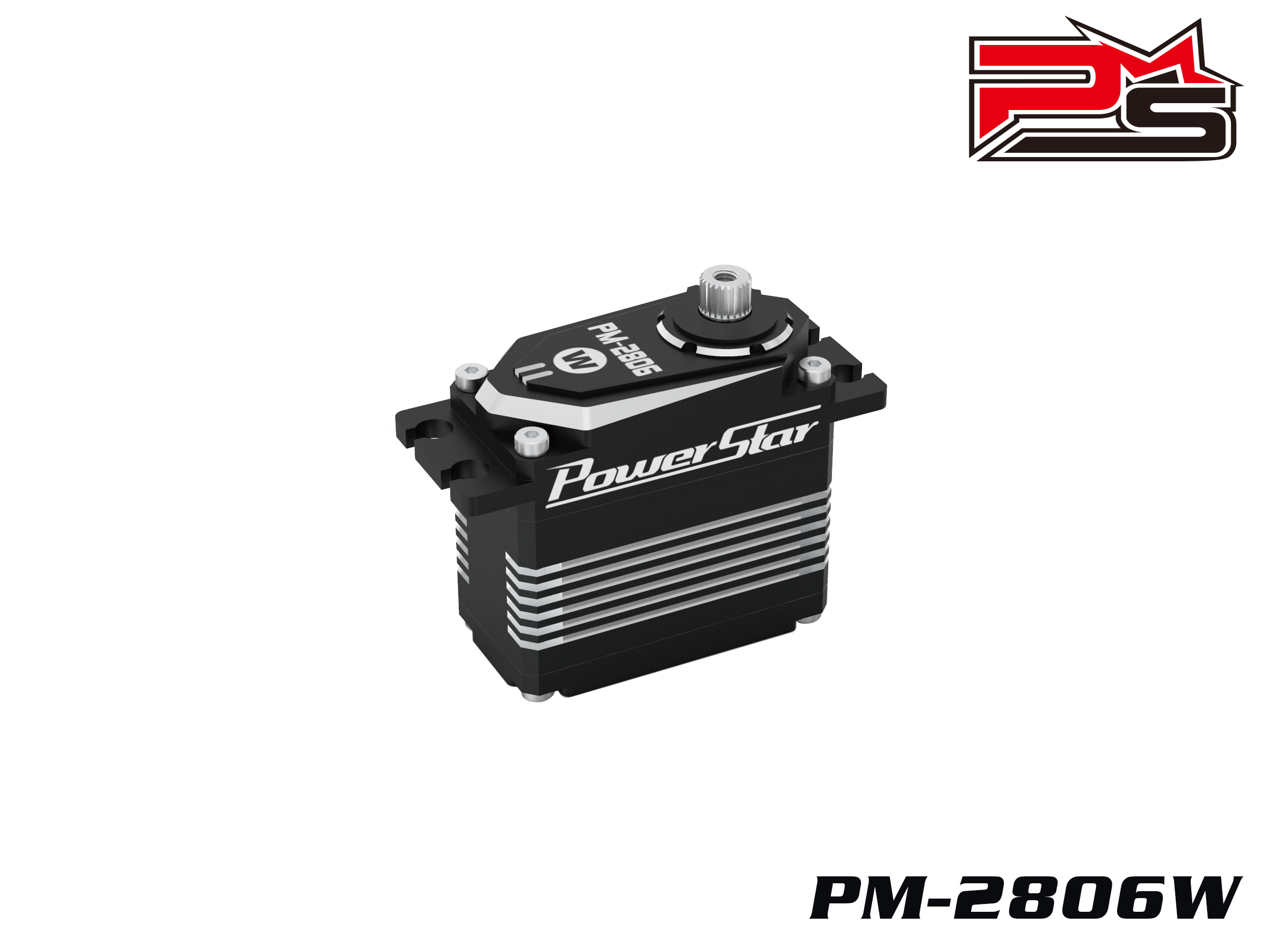

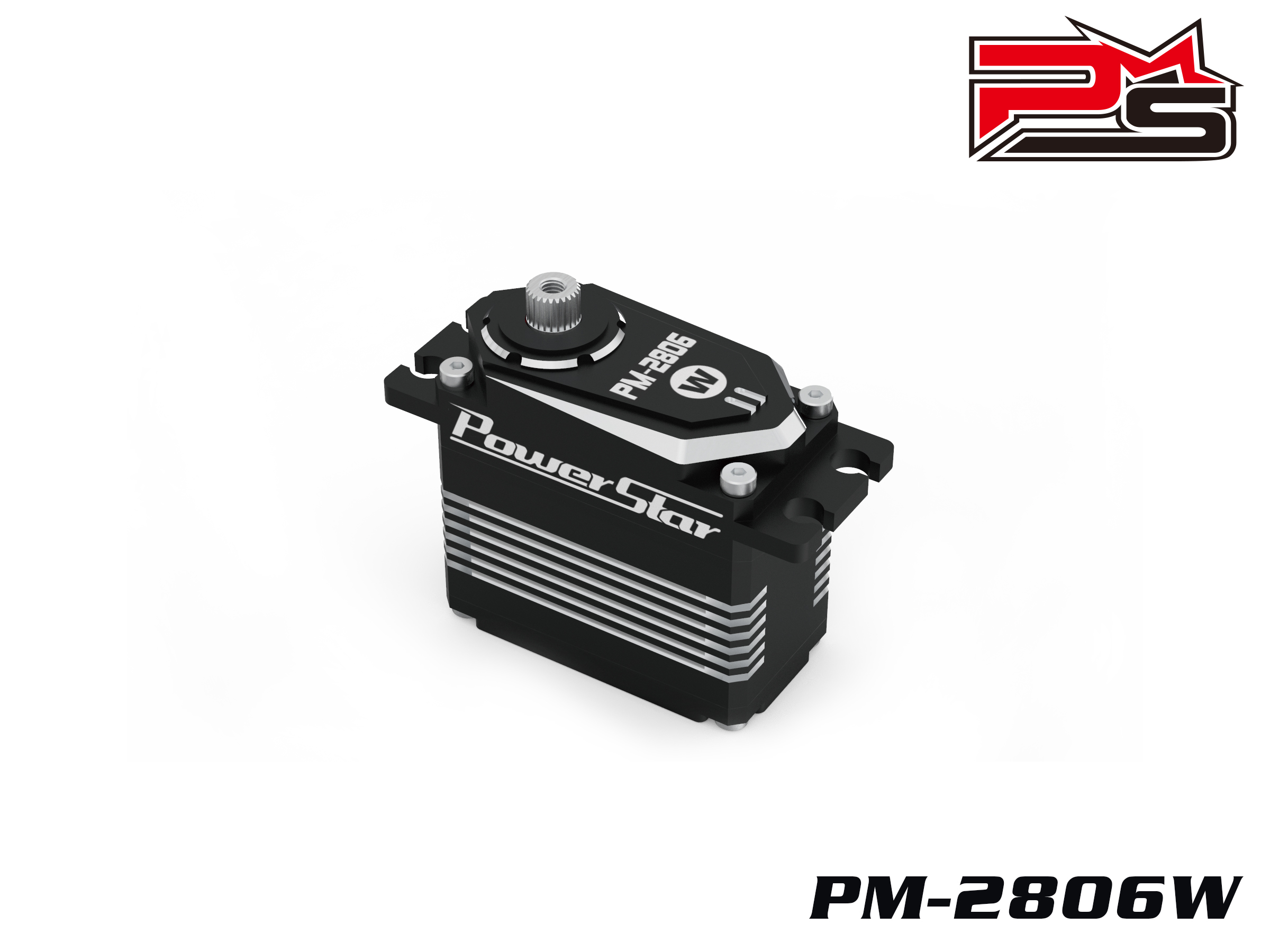

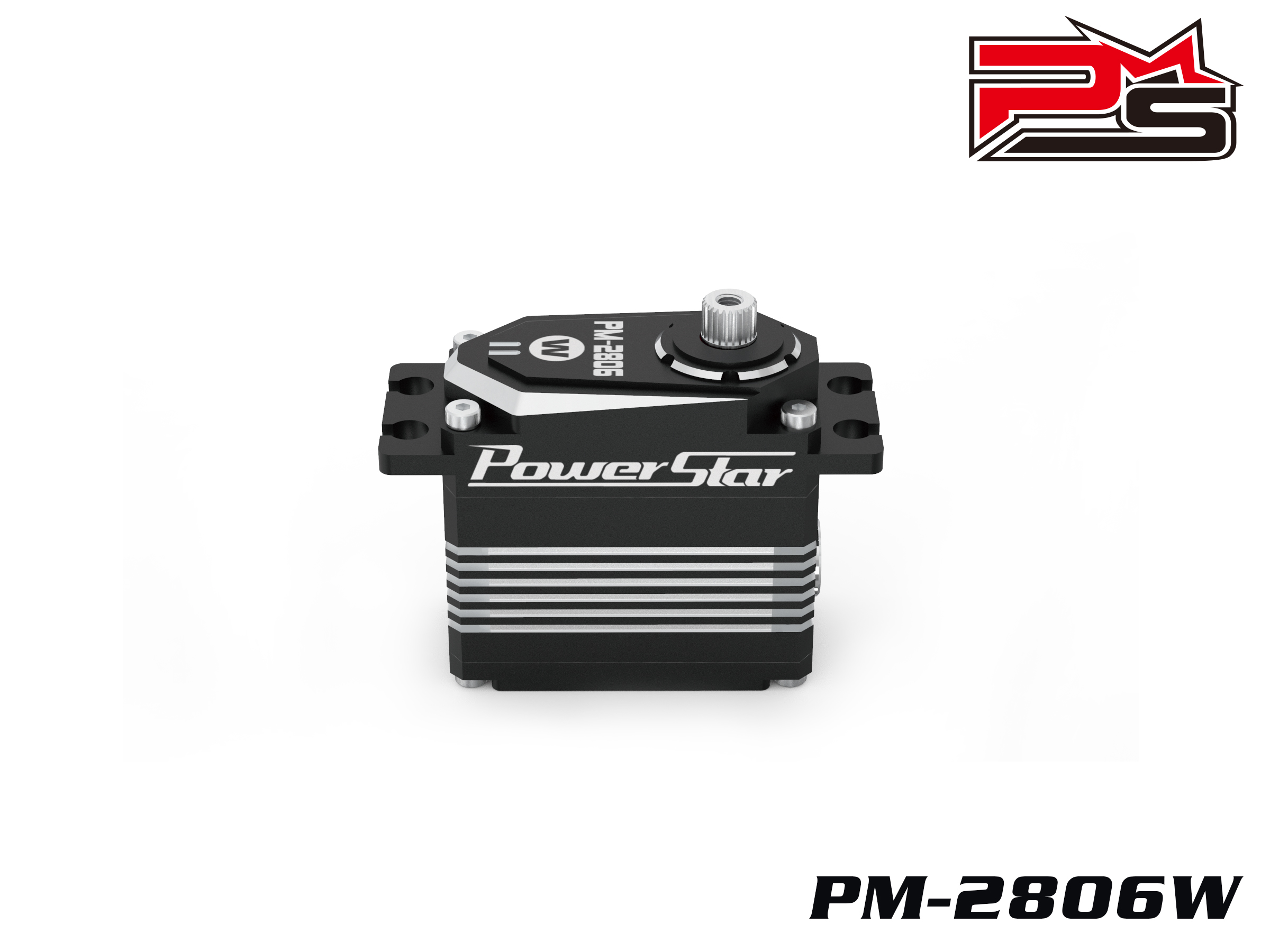

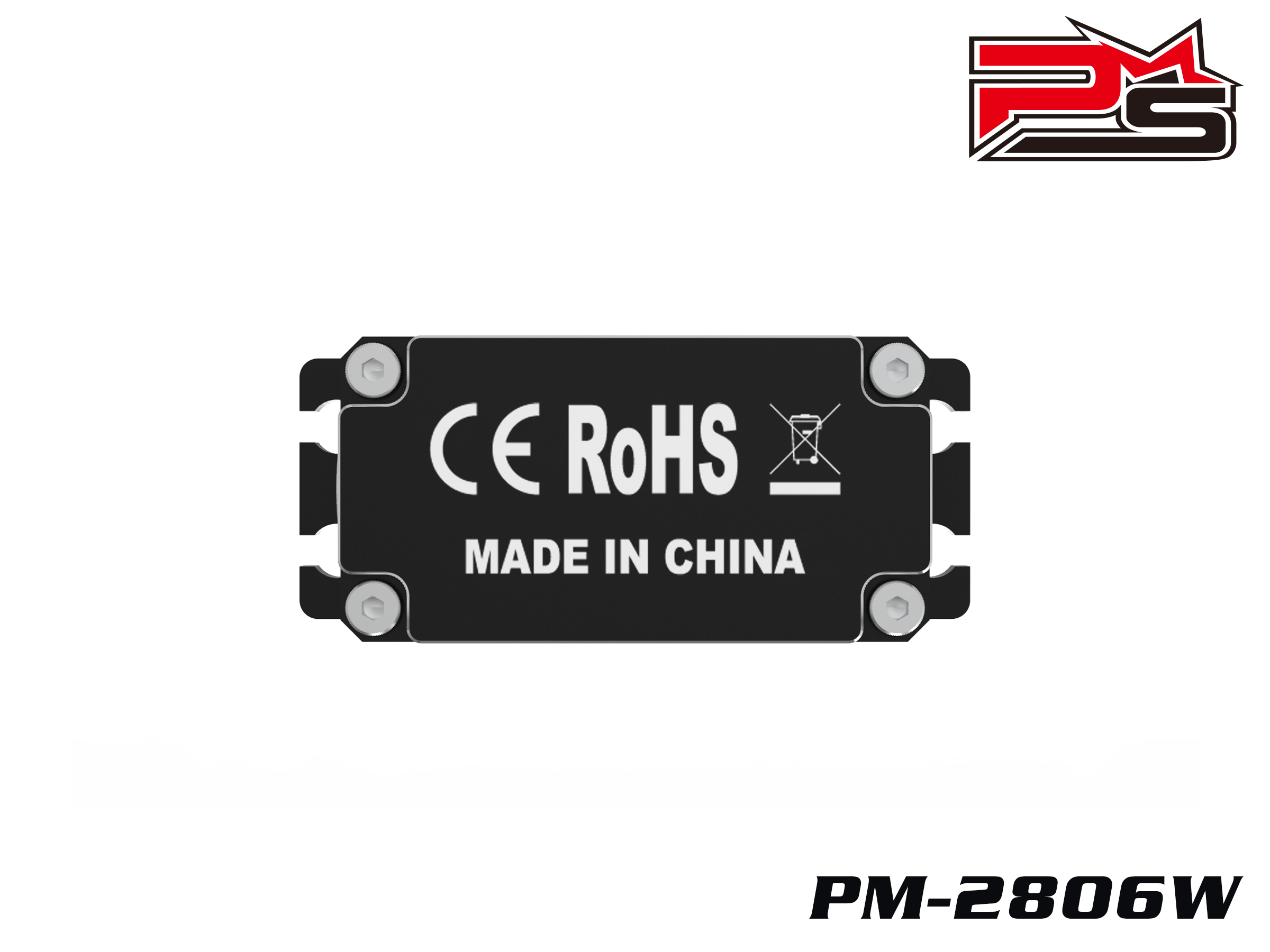

PM-2806W New HV Digital Waterproof Servo with Full Aluminum Case

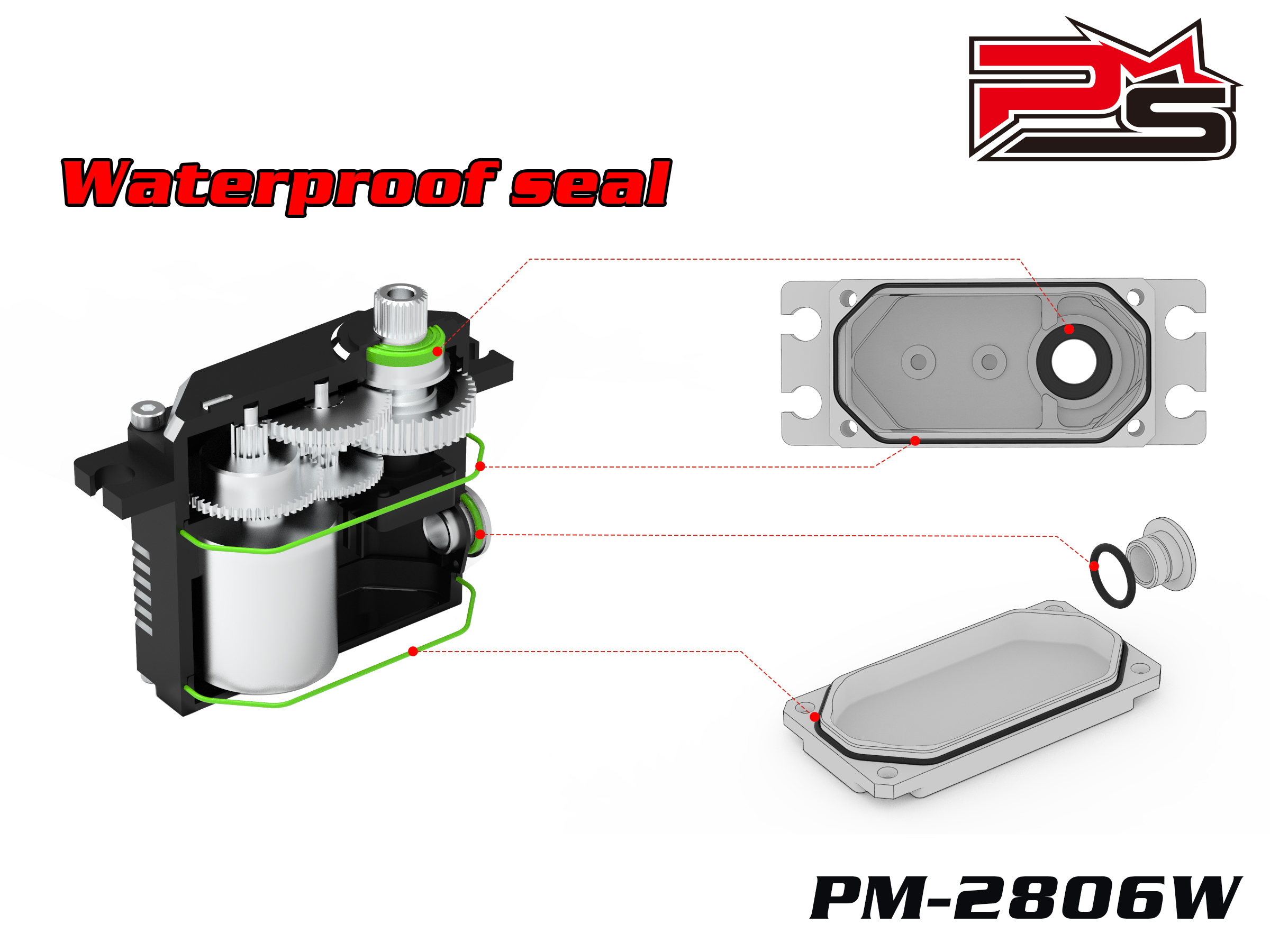

New HV Digital Servo is High-end,High-quality and waterproof & All aluminum case Servo ※ Full CNC Aluminum case for the best thermal dissipation and durability. ※ Use high-quality Brushless motor design provides extremely high speed, top efficiency, and lower power consumption, and resistance high temperature magnet. ※ Strong Metal Gear, Using the steel gear to increase the intensity, Reduce the inertia at the same intensity, Using the aluminum gear to reduce the noise. ※ High-Speed, High-precision 32-bit converter ※ Magnet angle sensor , precision ,Stable,low noise ※ Special process waterproof shell design with clear signal wire, IP67 waterproof, dust-proof. ※ Perfect packaging to enhance the brand figure. ※ Over current protection &over temperature protection ※ High Torque & Speed - The maximum torque of short body servo is up to 28 kg-cm @ 8.4V. Operating Speed: 0.06sec/60° ※ Upgrade & Programmable - The upgrade high torque waterproof digital servo is programmable servo ,programmer can change torque, speed, angle, inversion, etc. ※ Application - Ideal for 1/10, 1/12 touring cars, racing cars , airplane, boat, aircraftapplications.

Brand: vppro

Availability: 100


Torque(6.0V): 24.0 kg-cm /333 oz-in

Torque(7.4V): 26.0 kg-cm /361 oz-in

Torque(8.4V): 28.0 kg-cm /389 oz-in






Operating Voltage:4.8V ~ 8.4V

Weight: 79g ( no including accessory)

Bearing Type:Metal Bearing *2 pcs

Motor Type:Brushless

Gear Type:Steel(enhanced)

Operating Temperature range:-20℃~+60℃

Working frequency:1500μs / 333Hz

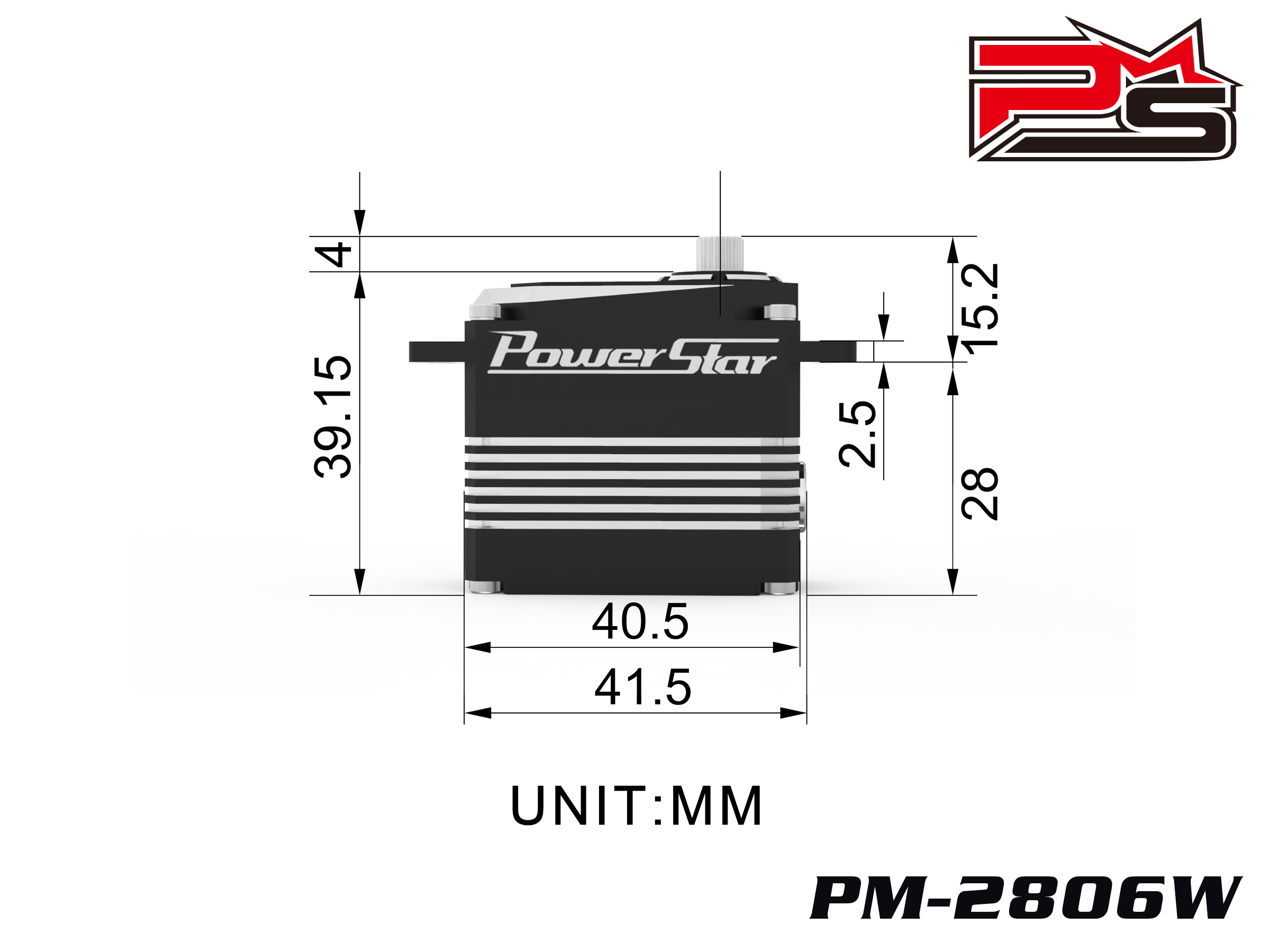

Size:39 x 21 x 40.5 mm

Wire Length:220mm

Wire Gauge: 22 AWG

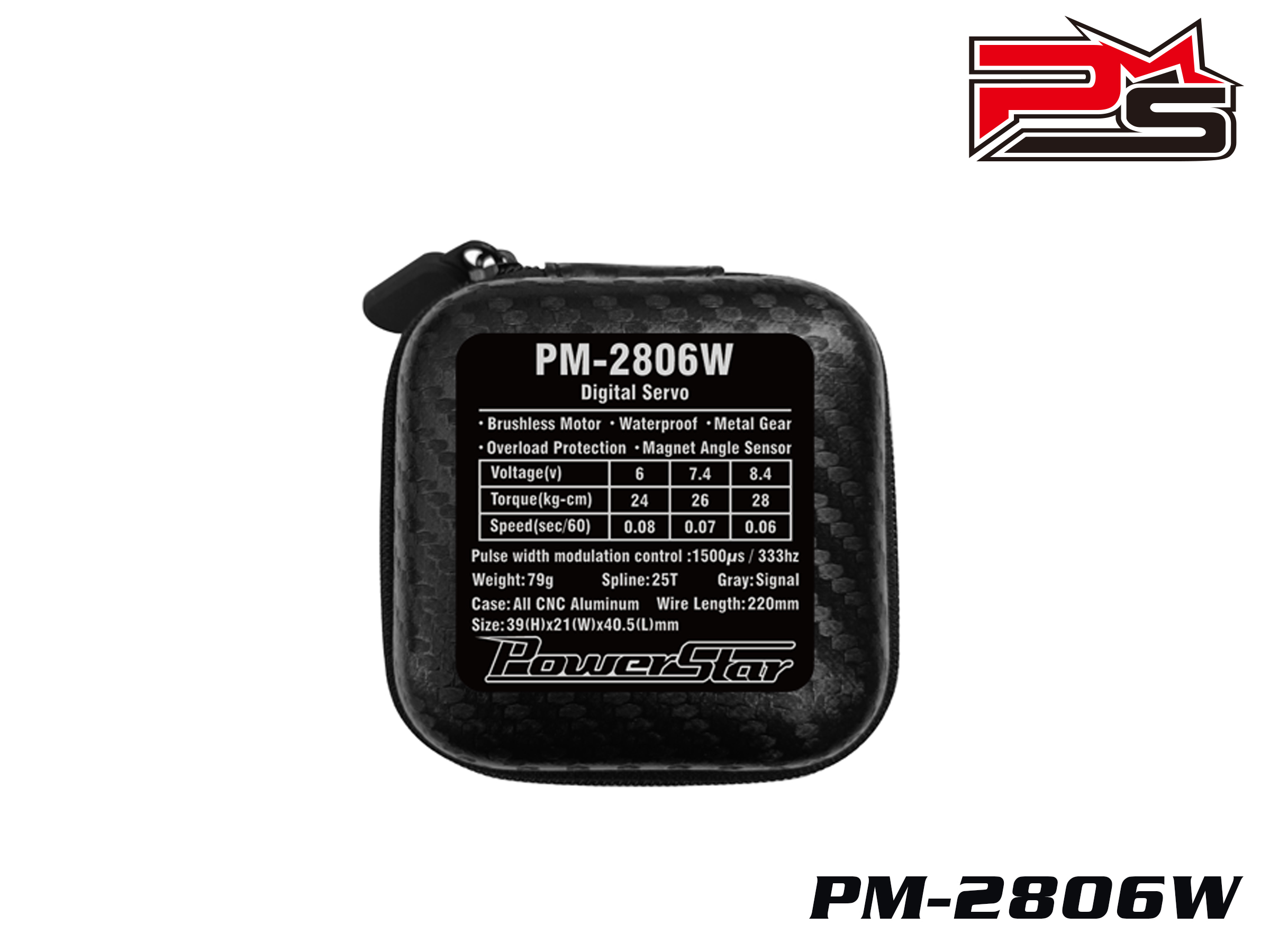

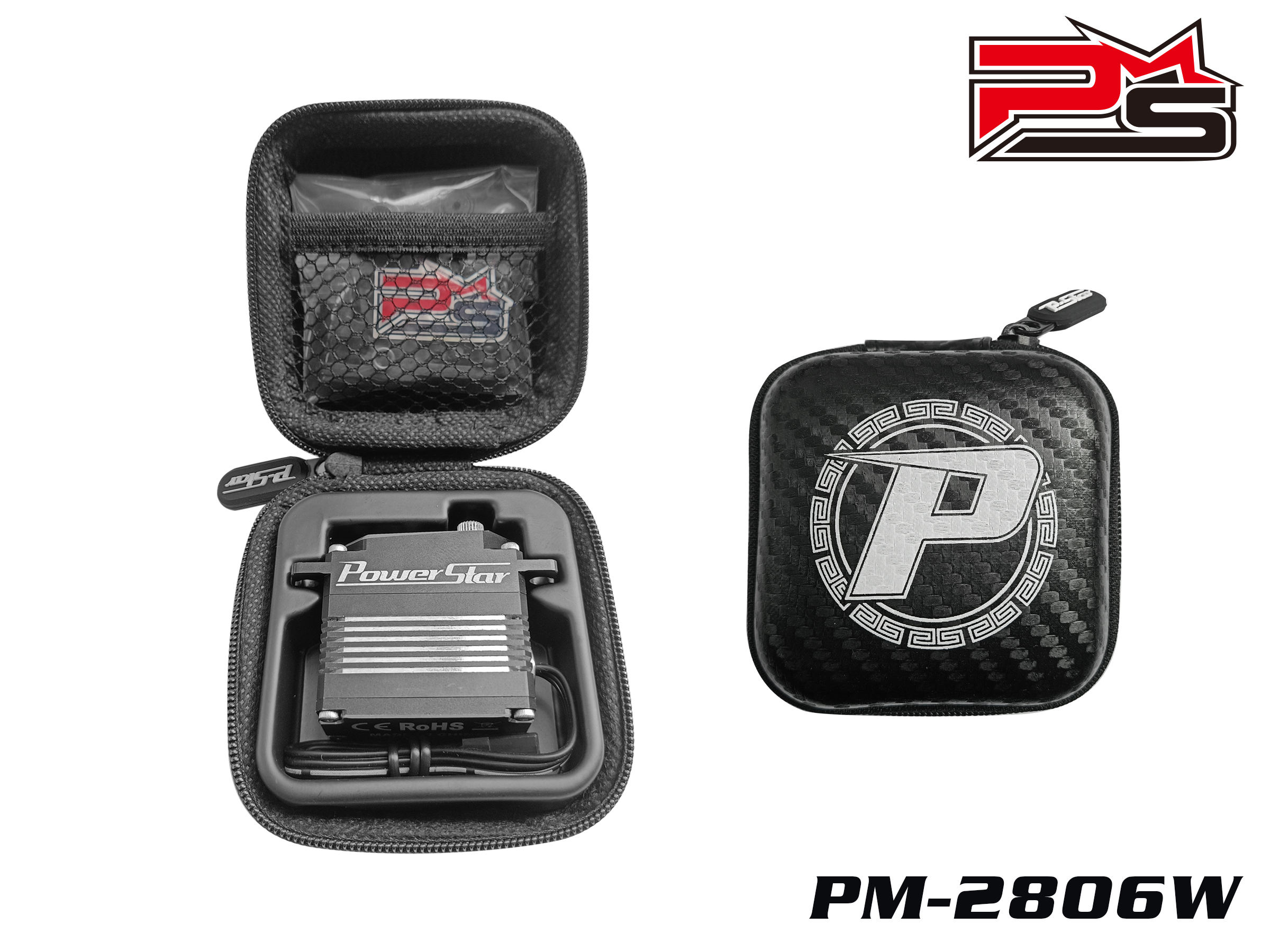

Package: 1 set Box-packed
